Performing payments with the widget

If you do not have PCI DSS, use our payment form widget to perform payments.

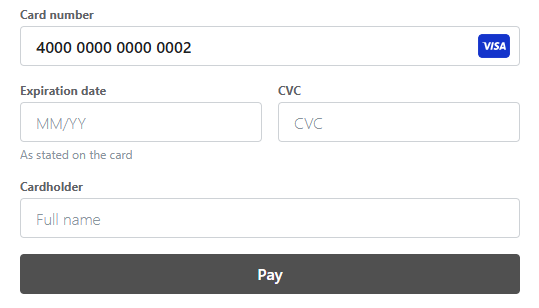

Standard widget

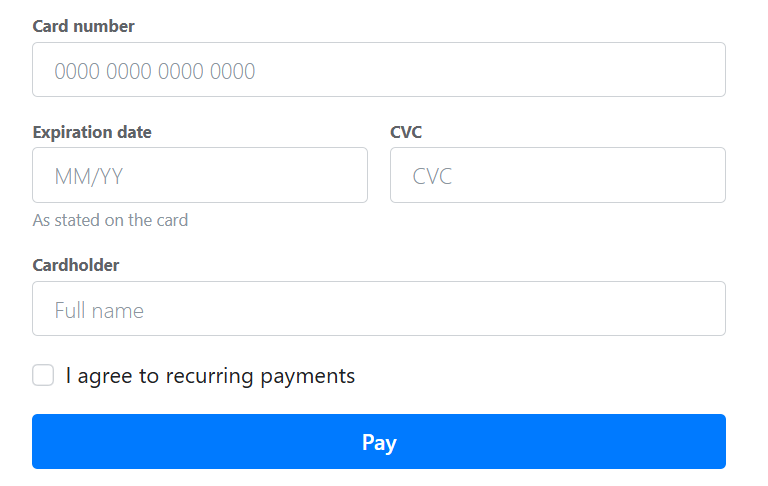

Widget with the recurring payments option
Example of a page with the widget

<html lang="en">
  <head>
    <meta charset="utf-8" />
    <title>Payment form widget</title>

    <link
      href="https://widget.smart-glocal.com/payment-form.css"
      rel="stylesheet"
      />
    <script src="https://widget.smart-glocal.com/payment-form.js" defer></script>
  </head>

  <body>
    <div id="smgl-payment-form"></div>

    <script>
      document.addEventListener('DOMContentLoaded', function () {
        if (!window.SmglPaymentForm) {
          return;
        }

        const paymentForm = new SmglPaymentForm('publicToken', {
          isCvcMasked: true,
          Redirect: {
               target: "_blank",
          }
        });

        paymentForm.render();
      });
    </script>
  </body>
</html>

Getting started

To start using our widget, do the following:

Link the scripts and styles

In test environment

<link href="https://widget-demo.smart-glocal.com/payment-form.css" rel="stylesheet" />
<script src="https://widget-demo.smart-glocal.com/payment-form.js" defer></script>

For real payments

<link href="https://widget.smart-glocal.com/payment-form.css" rel="stylesheet" />
<script src="https://widget.smart-glocal.com/payment-form.js" defer></script>

Add the widget container

<div id="smgl-payment-form"></div>

Once the script is linked to the page, the SmglPaymentForm class will appear in the global scope.

Now, you can make payments using our widget.

Below is an example of how to start any payment through the widget.

Complete the following steps:

Create a new session every time a user clicks Pay. To do this, send a session/create request.
Send a token request to create a token using the returned session identifier and specifying the widget name. As a result you will receive a public token.

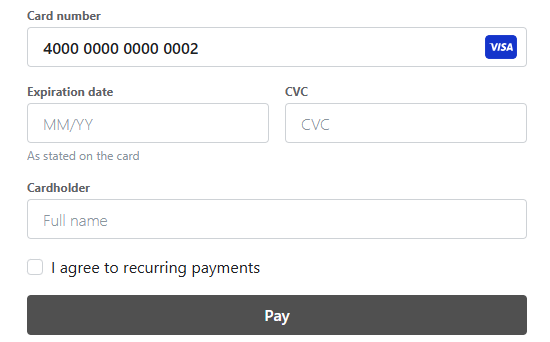

To create a widget with the I agree to recurring payments checkbox, pass true in the show_recurrent_checkbox parameter.
Example
curl -X POST \ http://demo.smart-glocal.com/api/v1/token \ -H 'Content-Type: application/json' \ -H 'X-PARTNER-PROJECT: your_project_name' \ -H 'X-PARTNER-SIGN: signature' \ -d '{ "acquiring_widget": { "session_id": "ps_34851", "show_recurrent_checkbox": "true", "locale":"en" } }'
You can also pass the locale optional parameter to ensure the widget localization stays the same after the user is redirected by a provider for additional services (for example, 3D Secure). Currently, the following values are available: "locale":"en" and "locale":"ru". If this parameter is not passed, "locale":"en" is used.
Use the returned public token to initialize the widget.
Example
const paymentForm = new SmglPaymentForm(publicToken);
To display the payment form, call the render() method:
Example
paymentForm.render();
Let the user interact with the widget through all the required steps.
Complete the operation according to the type of payment you are making. You will either receive webhooks or, if the webhooks are deactivated, you will need to check the session status to understand your next step as well as the payment result.

If, while using the widget, you receive an action_required webhook, send the HTTP 200 OK in response but do nothing, as the user will be redirected for 3D Secure within the widget.

`SmglPaymentForm`

Payment form class constructor.

const paymentForm = new SmglPaymentForm(publicToken[, options])

Parameter	Mandatory	Type	Description
publicToken	+	string	Public token
options	-	object	Additional settings object
container	-	HTMLElement	Container into which the form will be inserted. Default value: `<div id="smgl-payment-form"></div>`
isCvcMasked	-	bool	Set this parameter to `true` to mask the CVV/CVC field value
Redirect	-	Object	Redirection details
target	-	string	3DS window open options*: - `_blank` - in a new tab - `_self`- in the same frame - `_parent` - in the next level up of the frame if they are nested in one another - `_top` - outside of all the frames as the top window Default: `_top`
texts	-	object	UI element parameters
failedPaymentScreen	-	object	Failed payment screen
title	-	string	Failed payment message. Default value: `Error`
paymentForm	-	object	Payment form
buttonPayLabel	-	string	Payment button name. Default value: `Pay`
cardholderLabel	-	string	Cardholder name text. Default value: `Cardholder`
cardholderNote	-	string	Cardholder name prompt text. Default value: none
cardholderPlaceholder	-	string	Cardholder name placeholder. Default value: `Full name`
cardNumberLabel	-	string	Card number. Default value: `Card number`
cardNumberNote	-	string	Card number prompt text. Default value: none
cardNumberPlaceholder	-	string	Card number placeholder. Default value: `0000 0000 0000 0000`
cvvLabel	-	string	CVV/CVC number. Default value: `CVC`
cvvNote	-	string	CVV/CVC number prompt text. Default value: none
cvvPlaceholder	-	string	CVV/CVC number placeholder. Default value: `CVC`
expireDateLabel	-	string	Card expiration date. Default value: `Expiration date`
expireDateNote	-	string	Card expiration date prompt text. Default value: `As stated on the card`
expireDatePlaceholder	-	string	Card expiration date placeholder. Default value: `MM/YY`
recurrentLabel	-	string	Recurring payment checkbox. Default value: `I agree to recurrent payments`
termsAgreement	-	string	Terms of agreement. The text within the mandatory `{{#link}}{{/link}}` tags is used as a link to the terms of agreement source. Default value: `By pressing Pay, you accept the terms of our {{#link}}user agreement{{/link}}`
validationErrors	-	object	Field validation error messages
INVALID_CARD_NUMBER	-	string	Invalid card number. Default value: `Invalid card number`
INVALID_CVV	-	string	Invalid CVV/CVC. Default value: `CVV/CVC has 3 digits`
INVALID_EXPIRY_DATE	-	string	Invalid card expiration date. Default value: `Invalid date`
IS_REQUIRED	-	string	Required field value is missing. Default value: `Required field`
paymentProcessScreen	-	object	Payment process page
description	-	string	Payment processing page text. Default value: `Just a moment`
title	-	string	Payment process screen heading. Default value: `Payment processing...`
redirectionScreen	-	object	Redirecting page (3D Secure)
followTheLink	-	string	Invitation message to proceed with redirection in case of automatic redirection failure. The text within the mandatory `{{#link}}{{/link}}` tags is used as a link. Default value: `If you haven't been redirected automatically, use {{#link}}this link{{/link}}.`
title	-	string	Payment processing page header. Default value: `Payment processing...`
waitForRedirectToBanksPage	-	string	Automatic redirection warning, includes 3 seconds countdown timer. The `{{countdown}}` value is mandatory and will be replaced with the timer. Use the `{{#strong}}{{/strong}}` tags to emphasize the timer in bold. Default value: `You will be redirected to the issuer bank's page in {{#strong}}{{countdown}}seconds.{{/strong}}\`
successPaymentScreen	-	object	Successful payment page
title	-	string	Successful payment page header. Default value: `Payment success`
transactionData	-	object	Transaction data
amountLabel	-	string	Transaction amount label. Default value: `Amount`
creditCardLabel	-	string	Payment type data (card type and masked card number) label. Default value: `Card`
transactionIdLabel	-	string	Transaction ID label. Default value: `Transaction ID`
unknownError	-	string	Unknown error message. Default value: `Something went wrong...`

* Note that:

We do not recommend using the _self option for security reasons.

If you use the _blank option, the user will need to allow pop-ups in the browser or follow the redirection link from the payment widget.

Method: `paymentForm.render()`

The method displays the form on the page in the container defined by the options.container parameter.

    paymentForm.render([options])

Parameter	Mandatory	Type	Description
options	-	Object	Additional settings object
options.container	-	HTMLElement	Container into which the form will be inserted. Default value: `<div id="smgl-payment-form"></div>`

Event handlers

`paymentForm.onReady`

Handles the event of the form getting ready for work.

paymentForm.onReady = function () {
/* handler */
    }

`paymentForm.onPaymentStart`

Handles the event occurring at the start of the payment process.

paymentForm.onPaymentStart = function () {
/* handler */
    }

`paymentForm.onPaymentSuccess`

Handles the event occurring when the payment process finishes successfully.

paymentForm.onPaymentSuccess = function () {
/* handler */
    }

`paymentForm.onPaymentFail`

Handles the event occurring when the payment process finishes unsuccessfully.

paymentForm.onPaymentFail = function (error) {
/* handler */
    }

You can link your own styles at the end of the default ones and override them.

HTML
CSS

<link href="https://widget.smart-glocal.com/payment-form.css" rel="stylesheet" />
<link href="custom-styles.css" rel="stylesheet" />

/* custom-styles.css */

.smgl-Field__label {
  color: green;
}

You cannot yet change the appearance of the values entered inside the iframe. This functionality will be added later.

Also, you can modify texts of the widget UI elements. Here are what you can change:

labels
placeholders
error messages
prompt texts
button names
footer texts

To do that, pass the Options object with UI element parameters within the SmglPaymentForm widget constructor.

Example of how to add a Spanish localization

Click here to expand

const paymentForm = new SmglPaymentForm('<public token>', {
  isCvcMasked: true,

  texts: {
    failedPaymentScreen: {
      title: 'Error',
    },

    paymentForm: {
      buttonPayLabel: 'Pagar',

      cardholderLabel: 'Titular de la tarjeta',
      cardholderNote: '',
      cardholderPlaceholder: 'Nombre completo',

      cardNumberLabel: 'Número de tarjeta',
      cardNumberNote: '',
      cardNumberPlaceholder: '0000 0000 0000 0000',

      cvvLabel: 'CVC',
      cvvNote: '',
      cvvPlaceholder: 'CVC',

      expireDateLabel: 'Fecha de vencimiento',
      expireDateNote: '',
      expireDatePlaceholder: 'Como se indica en la tarjeta',

      recurrentLabel: 'Autorizo pagos recurrentes',

      termsAgreement:
        'Al presionar Pagar, Ud. acepta los términos de nuestro {{#link}}acuerdo de usuario{{/link}}',

      validationErrors: {
        INVALID_CARD_NUMBER: 'Número de tarjeta inválido',
        INVALID_CVV: 'CVV/CVC tiene 3 dígitos',
        INVALID_EXPIRY_DATE: 'Fecha inválida',
        IS_REQUIRED: 'Campo requerido',
      },
    },

    paymentProcessScreen: {
      tion: 'Espere un momento',
      title: 'Procesando el pago...',
    },

    redirectionScreen: {
      followTheLink:
        'Si Ud. no es redirigido automáticamente, use {{#link}}este enlace{{/link}}.',
      title: 'Procesando el pago...',
      waitForRedirectToBanksPage:
        'Será redirigido a la página web del banco emisor en {{#strong}}{{count}} segundos{{/strong}}.',
    },

    successPaymentScreen: {
      title: 'Éxito',
    },

    transactionData: {
      amountLabel: 'Cantidad',
      creditCardLabel: 'Tarjeta',
      transactionIdLabel: 'ID de transacción',
    },

    unknownError: 'Algo salió mal...',
  },
});

End user errors

While interacting with our widget, end users may receive the errors stated below.

If you choose to translate the widget texts into other languages, for example, Spanish, note that for now end users will receive error descriptions still in English.

Error code	Error description
3DS_error	To complete the transaction successfully, 3DS authentication is required
activity_count_exceeded	The activity/amount limit for the card is exceeded
bank_card_expired	The bank card is past its expiration date
declined_by_issuer_bank	The operation was declined by the emitting bank
insufficient_funds	The card does not have enough funds
